Description
BIGGER, BETTER, SKYJACKThe new SJ9664 RT still boasts the features that are associated with Skyjack, including an AXLDRIVE™, commonality of parts throughout the range, and attention to accessibility for service.It’s these core competencies that keep the cost of ownership down, and positioning Skyjack as an industry leader in all-terrain performance. Owners and operators alike will appreciate the improvements we have made on this new machine.
Specifications
Manufacturer
Skyjack
Model
SJ9664 RT
Year
2026
Category
Aerial Work Platforms
Subcategory
Rough Terrain Scissors
Work Height
70’ (21.34 m)
Raised Platform Height
64’ (19.51 m)
Lowered Platform Height
96.5” (2.45 m)

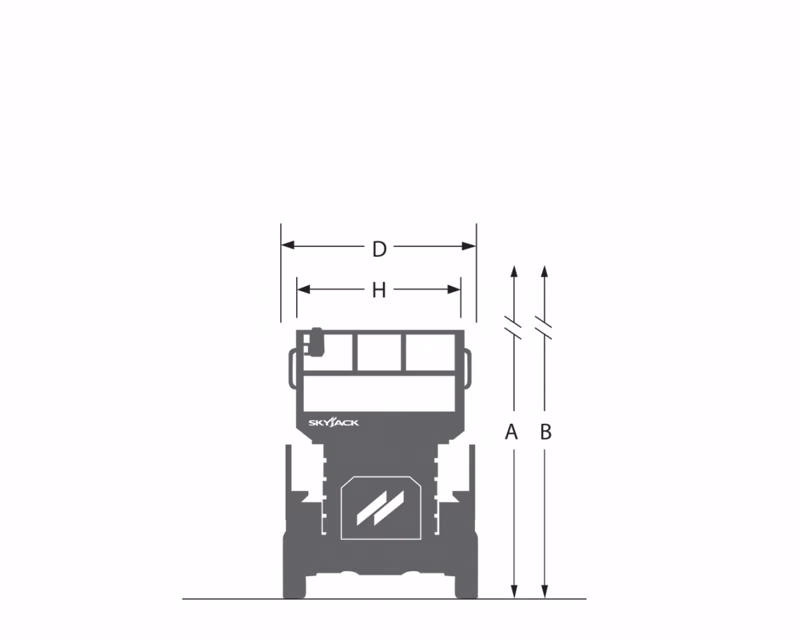

Overall Width
96” (2.44 m)
Overall Length
180” (4.57 m)
Stowed Height (Rails Up)
142” (3.61 m)
Stowed Height (Rails Down)
109” (2.77 m)
Platform Width (Inside Dimension)
75” (1.90 m)
Platform Length (Inside Dimension)
171.7” (4.36 m)
Extension Deck (Roll Out)
5’ (1.52 m)
Extension Deck
Single 231” (5.87 m) / Double 284” (7.21 m)
Ground Clearance
10” (26 cm)
Wheelbase
119” (3.02 m)
Turning Radius (Inside)
131” (3.33 m)
Weight
21,495 lbs (9,750 kg)
Gradeability
30%
Lift Time (With Rated Load)
86 sec
Lower Time (With Rated Load)
70 sec
Drive Speed (Stowed)
3.0 mph (4.8 km/h)
Drive Speed (Raised)
0.5 mph (0.80 km/h)
Maximum Drive Height
30’ (9.14 m)
Capacity
1130 lbs (513 kg)
Distributed Capacity (Extension Deck)
630 lbs (286 kg)
Maximum # of Persons
3
Tire Type
Solid
Tire Size
33 x 12-20
Diesel Engine
Kubota 24.8 HP D1305
Fuel Tank
13 gal (49 L)
Hydraulic Reservoir
31 gal (116 L)
