Description

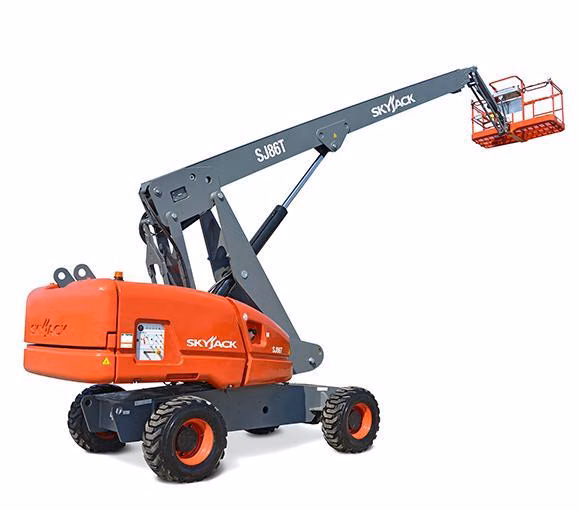

Precise positioning Skyjack telescopic booms are ideal when extended horizontal and vertical outreach are key for the job site. These offer precise positioning paired with high capacity platforms and industry-leading reach.
Specifications
Manufacturer
Skyjack
Model
SJ86 T
Year
2026
Category
Aerial Work Platforms
Subcategory
Telescopic Booms
Work Height
88’ (26.82 m)
Platform Height
82’ (24.99 m)
Platform Size
36” x 96” (0.91 x 2.44 m)
Stowed Width
8' 2” (2.49 m)
Tailswing
4' 8” (1.42 m)
Stowed Height
9' 10” (3.00 m)
Transportation Height
10' 3(3.13 m)
Stowed Length
37’ 10” (11.53 m)
Transportation Length
10.59 m
Ground Clearance
16” (0.41 m)
Wheelbase
11' (3.35 m)
Weight
37,600 lb (17,055 kg)
Turning Radius (Inside)
11' 6” (3.51 m)
Turning Radius (Outside)
21' (6.40 m)
Axle Oscillation
4” (10.16 m)
Capacity
500 lbs (227 kg) / 750 lbs / (341 kg)

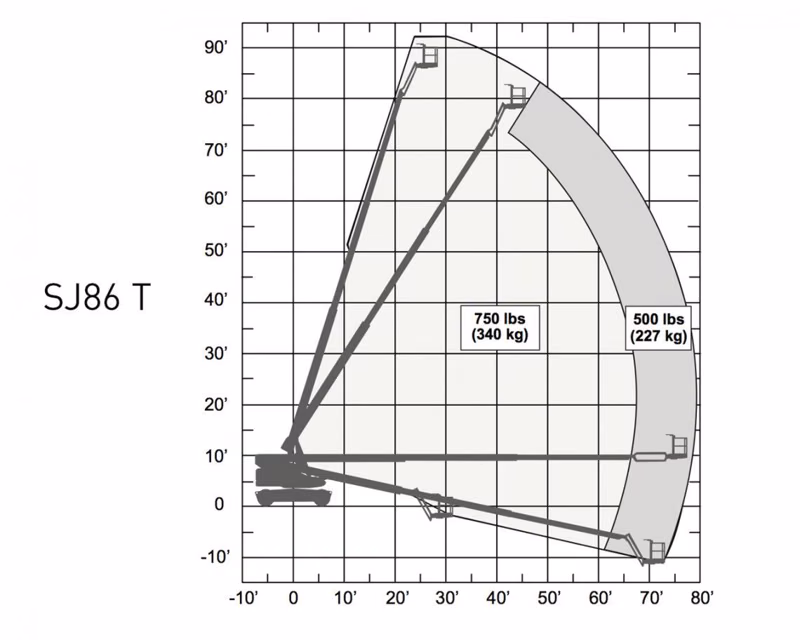

Horizontal Reach
72’ 6” (22.10 m)
Tire Size
18-625
Rotation
360° Continuous
Platform Rotation
170°
Gradeability
45%
Drive Speed (Stowed)
3 mph (4.8 km/h)
Local Floor Load (With Rated Load)
175 psi (12.30 kg/sq cm)
Overall Floor Load (With Rated Load)
325 psf (1,587 kg/sq m)
Maximum # of Persons
2/3
Wind Rating
28 mph (12.5 m/s)
Tire Type
Foam Filled
Diesel Engine
74 HP
Fuel Tank
45 gallon (170 L)
Hydraulic Reservoir
60 gallon (227 L)
