Description

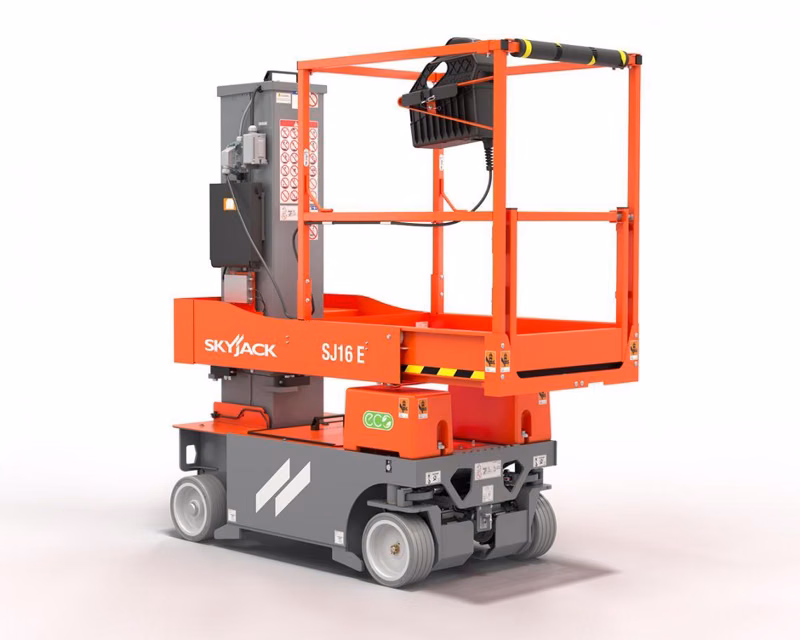

SIMPLY TRANSFORMEDSkyjack’s Next Generation Vertical Mast Lifts provide a quiet and versatile package with zero emissions and other ECO benefits. Variable speed direct AC electric drive provides exceptional duty cycles, while their proportional drive and lift controls offer superior drive efficiency and consistent torque.
Specifications
Manufacturer
Skyjack
Model
SJ16 E
Year
2026
Category
Aerial Work Platforms
Subcategory
Vertical Mast Lifts
Work Height
21’ 6” (6.55 m)
Raised Platform Height
15’ 6” (4.72 m)
Lowered Platform Height
30” (0.76 m)
Overall Width
30.5” (0.77 m)
Overall Length
54” (1.37 m)
Stowed Height
74” (1.88 m)
Platform Width (Inside Dimension)
27” (0.69 m)
Platform Length (Inside Dimension)
36” (0.91 m)
Extension Deck (Roll Out)
16” (0.41 m)
Ground Clearance (Stowed)
1” (2.54 cm)
Ground Clearance (raised)
3.5” (9 cm)
Wheelbase
44” (1.12 m)
Turning Radius (Outside)
55” (1.40 m)
Lift Time (With Rated Load)
21 sec
Gradeability
25%
Lower Time (With Rated Load)
22 sec
Drive Speed (Stowed)
2 mph (3.0 km/h)
Drive Speed (Raised)
0.3 mph (0.5 km/h)
Maximum Drive Height
Full Height
Capacity
500 lbs (227 kg)
Local Floor Load (With Rated Load)
169 psi (1167 kPa)
Overall Floor Load (With Rated Load)
217 psf (10.4 kPa)
Maximum # of Persons
1
Wind Rating
0 / Optional 1 @ 28 mph (12.5 m/s)
Tire Type
Solid, Non-Marking
Tire Size
10” x 4” (252 mm x 102 mm)
Weight
2,054 lbs (931 kg)
