Description

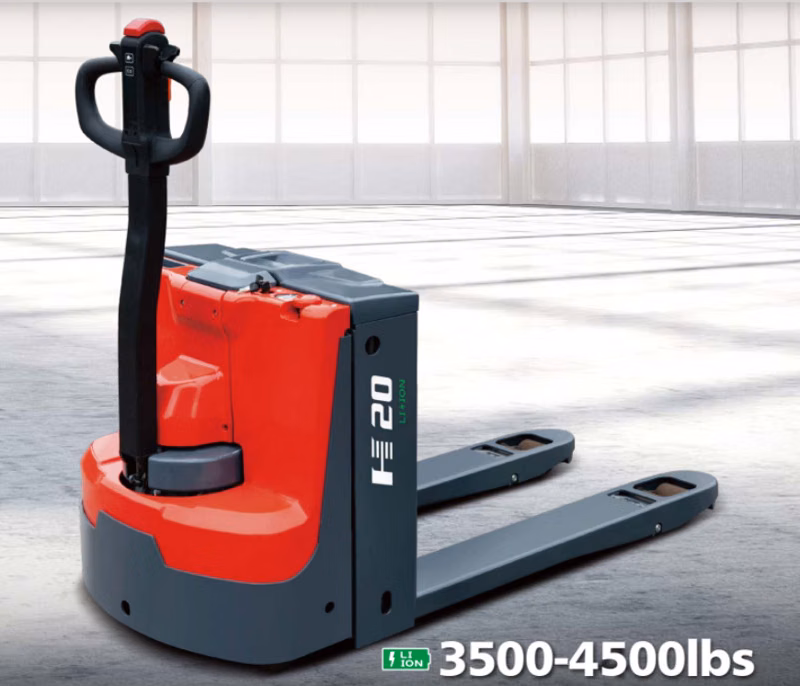

Heli America CBD16
Specifications
Manufacturer
Heli America
Model
CBD16
Year
2026
Category
Pallet Jack
Subcategory
Electric Pallet Jack
Manufacturer
HELI
Type of operation
Pedestrian propelled
Rated capacity
3500 lb
Tyre type
Polyurethane
Wheels, number front/rear
1×2/2
Travel speed
3/4 mph
Lift speed
8/10 mph
Lowering speed
10/8 mm/s
Max gradeability
10/20
Service brake type
Electromagnetic brake
Driving motor power
1.5 hp
Lifting motor power
3 hp
Controller
ZAPI
Total weight
825 lb
Type of drive control
AC
Sound pressure level at driver’s ear
≤69
Steering type
Manual steering
Number of wheels on one side of forks
1
Number of front/rear guide wheels for single side forks
1/1
Load center distance
24 in
Lift height
4 in
Front overhang
38 in
Wheelbase
51 in
Tyre size, driving wheels
Φ9×3 in
Tyre size, loading wheels
Φ3×5 in
Tyre size, additional wheels
2*Φ4×1.5 in
Track width, loading side
20 in
Overall length
65 in
Overall width
28 in
Fork dimension
2745 in
Width of forks
26 in
Lowered height
3 in
Min ground clearance
0.8 in
Height drawbar in driving position
33/50 in
Aisle width with pallet 1000×1200 across forks
87 in
Aisle width with pallet 800×1200 along forks
82 in
Min turning radius (in)
56 (58) in
Battery box dimension
26×6×24 in
Battery voltage / rated capacity
24V/90Ah
Battery weight
132 lb
