Description

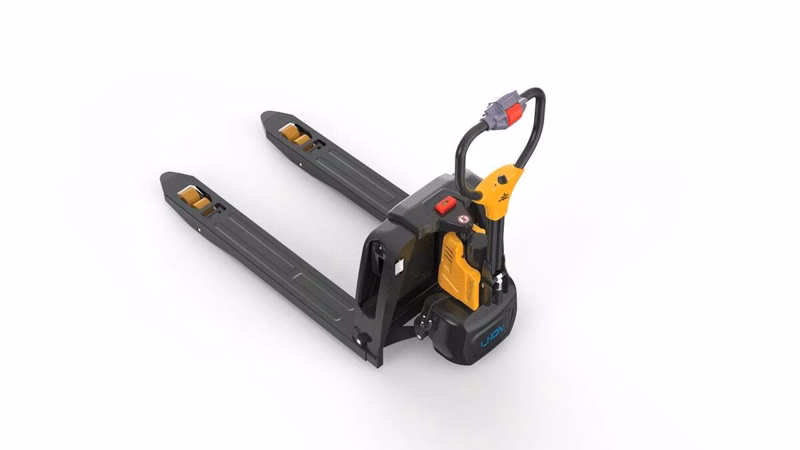

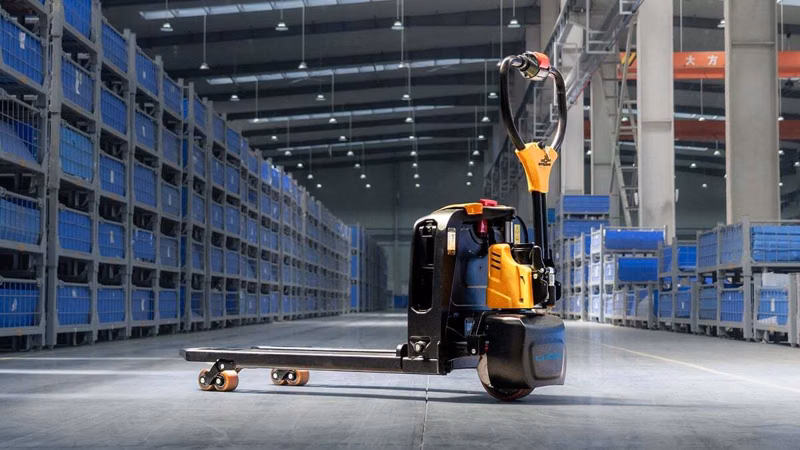

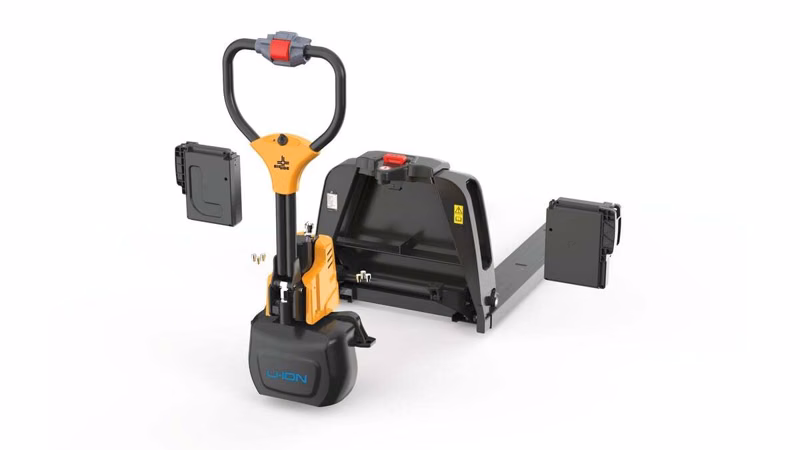

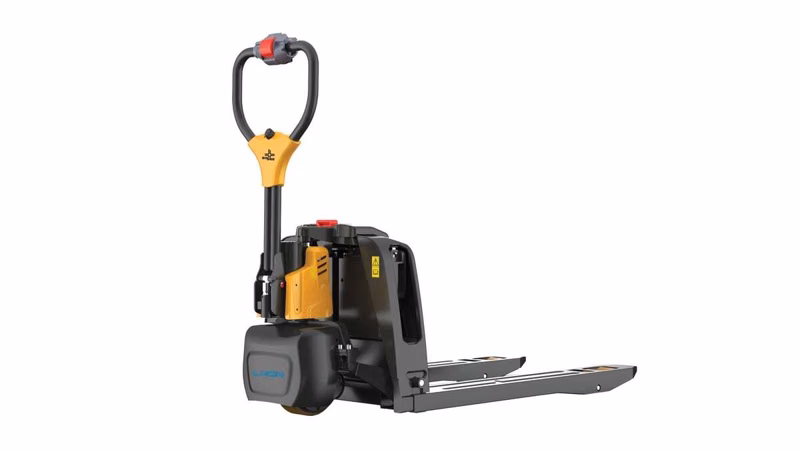

The WPL33E is a pallet truck designed to be simple, intuitive, and flexible. Its compact size, lightweight, and intuitive controls can help operations move from manual equipment to powered pallet trucks, reducing fatigue and saving time for employees. It includes an onboard battery charger and uses easy-exchange batteries, making this truck adaptable to many applications.
Specifications
Manufacturer
Big Joe
Model
WPL33E
Year
2026
Category
Pallet Jack
Subcategory
Lithium-Ion Pallet Trucks
Drive
Electric
Operator type
Pedestrian
Load capacity
3300 Ib
Service weight
255 lb
Axle loading, laden (front / rear)
1055/2500 lb
Axle loading, unladen (front / rear)
190/65 lb
Tire type
Polyurethane
Max gradeability, laden/unladen
6 / 16 %
Service brake
Electromagnetic
Drive motor rating S2 60min
0.75 kW
Lift motor rating at S3 15%
0.5 kW
Battery voltage / nominal capacity
24 / 20 V/Ah
Battery weight
11 lb
Steering system
Mechanical
Charger output current
10 A
Wheels, number (front/rear) x=drive wheels
1x / 2
Load center distance
24 in
Load distance, center of drive axle to fork X
37.5 in
Wheelbase y
46.5 in
Tire size front
8, 3 * 2.8
Tire size, rear
2, 9 * 3 ,5
Tread width, rear b11
21.0 in
Lift stroke h3
4.1 in
Height of tiller handle in drive position MIN / MAX h14
29.5 / 46.9 in
Lowered height h13
3.2 in
Overall length l1
61.0 in
Length to face of forks l2
15.7 in
Overall width b1/b2
27.4 in
Fork dimensions s x e x l
2 x 5.9 x 45.3 in
Fork spread b5
27.0 in
Ground clearance, center of wheelbase m2
1.0 in
Turning radius Wa
53.5 in
Travel speed, laden/unladen
2.5 / 2.8 mph
Lifting speed, laden/unladen
3.3 / 3.9 fpm
Lowering speed, laden/unladen
11.4 / 9.0 fpm
