Description
Skyjack's new SJ6940 RT offers unequaled rough terrain performance with 4 wheel drive and oscillating front steer axle. It's not only the highest working height, but also offers the longest working area in its class. These new scissors are an ideal solution for outdoor and indoor jobsites.
Specifications
Manufacturer
Skyjack
Model
SJ6940 RT
Year
2026
Category
Aerial Work Platforms
Subcategory
DC Electric Scissors

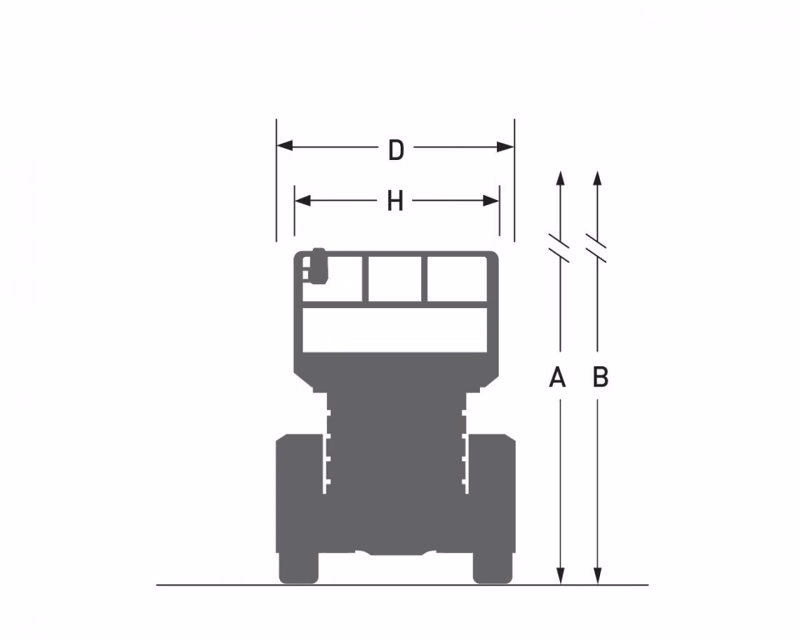

Work Height
46' (14.02 m)
Raised Platform Height
40' (12.19 m)
Lowered Platform Height
60" (1.52 m)
Overall Width
70.5" (1.8 m)
Overall Length
143" (3.63 m)
Stowed Height (Rails Up)
108" (2.74 m)
Stowed Height (Rails Down)
75" (1.91 m)
Platform Width (Inside Dimension)
56.5" (1.44 m)
Platform Length (Inside Dimension)
133" (3.38 m)
Extension Deck (Roll Out)
3.5' (1.07 m)
Ground Clearance
8" (20 cm)
Wheelbase
85" (2.16 m)
Turning Radius (Inside)
80" (2.03 m)
Turning Radius (Outside)
185” (4.7 m)
Weight
11,065 lbs (5,019 kg)
Gradeability
35%
Lift Time (With Rated Load)
60 sec
Lower Time (With Rated Load)
37 sec
Drive Speed (Stowed)
3.5 mph (5.6 km/h)
Drive Speed (Raised)
0.3 mph (0.5 km/h)
Maximum Drive Height
Full Height
Capacity (Overall)
800 lbs (363 kg)
Distributed Capacity (Main Platform)
500 lbs (227 kg)
Distributed Capacity (Extension Deck)
300 lbs (136 kg)
Local Floor Load (With Rated Load)
103 psi (710 kPa)
Overall Floor Load (With Rated Load)
288 psf (13.8 kPa)
Maximum # of Persons
3 @ 0 mph (0 m/s)
Wind Rating
2 @ 28 mph (12.5 m/s)
