Description

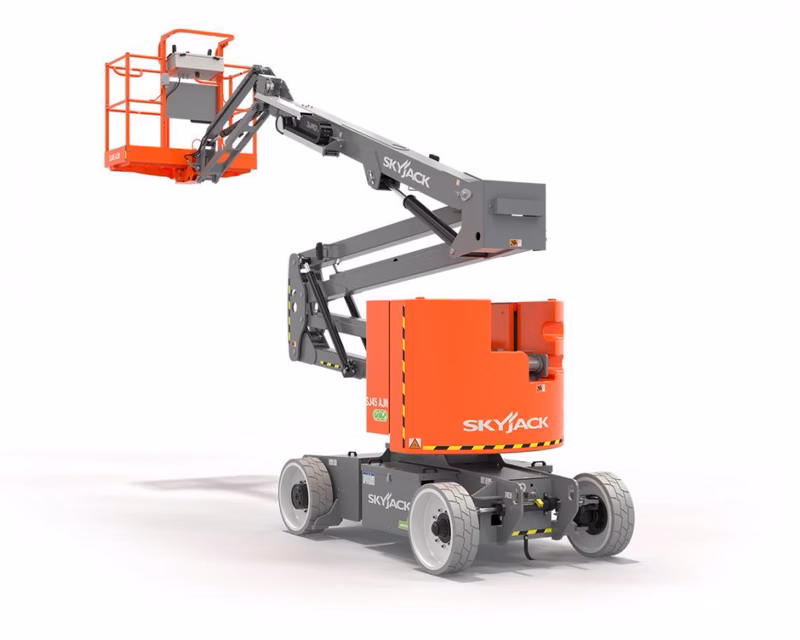

Superior Working Height Class Leading Up-And-Over Access Skyjack’s new SJ45 AJN and SJ45 ARJN battery powered electric articulated slab booms have been developed to provide a clean, quiet, sustainable rental solution with no emissions, lower operating costs and increased utilization.
Specifications
Manufacturer
Skyjack
Model
SJ45 ARJN
Year
2026
Category
Aerial Work Platforms
Subcategory
Articulating Booms
Work Height
51’ (15.54 m)
Platform Height
45’ (13.72 m)
Up and Over Height
25’ 7” (7.8 m)
Platform Size
30" x 58" (0.76 x 1.47 m)
Stowed Width
4’ 11” (1.5 m)
Tailswing
6” (0.15 m)
Stowed Height
6’ 6” (1.98 m)
Transportation Height
7’ (2.13 m)
Stowed Length
22’ 9” (6.93 m)
Transportation Length
21’ 7” (6.57 m)
Ground Clearance
3” (7.6 cm)
Wheelbase
6’ 7” (2 m)
Jib Length
4’ 8” (1.42 m)
Turning Radius (Inside)
3’ 8” (1.12 m)
Turning Radius (Outside)
11’ 4” (3.45 m)
Horizontal Reach
22’ 5” (6.82 m)
Local Floor Load (With Rated Load)
230 psi (16.17 kg/cm2)
Ground Bearing Pressure (With Rated Load)
180 psi (12.66 kg/cm2)
Overall Floor Load (With Rated Load)
499 psf (2435 kg/m2)
Tire Size
600 x 190
Rotation
355° NC
Platform Rotation
175°
Jib Range +/-
145° (+75° / -70°)
Weight
15,600 lbs (7,076 kg)
Gradeability
35%
Drive Speed (Stowed)
3 mph (4.8 km/h)
Drive Speed (Raised)
0.4 mph (0.6 km/h)
Capacity
500 lbs (227 kg)
Maximum # of Persons
2 / 1
Wind Rating
28 mph (12.5 m/s)
Tire Type
Solid, NM
